SI-250

Manhole inspection – fast, simple, and efficient

SI-250 – Manhole inspection redefined



The SI-250 is Kummert's powerful manhole inspection system, developed for fast, safe, and reproducible inspection of sewage manholes.



Thanks to its robust design, intelligent sensor technology, and high-resolution camera, the SI-250 delivers precise results—even under demanding operating conditions.



Thanks to its semi-automatic operation, the time required per shaft is significantly reduced, while at the same time ensuring consistently high documentation quality.

Your advantages with the SI-250



  • 250° field of view
    Complete coverage of the shaft interior without manual readjustment

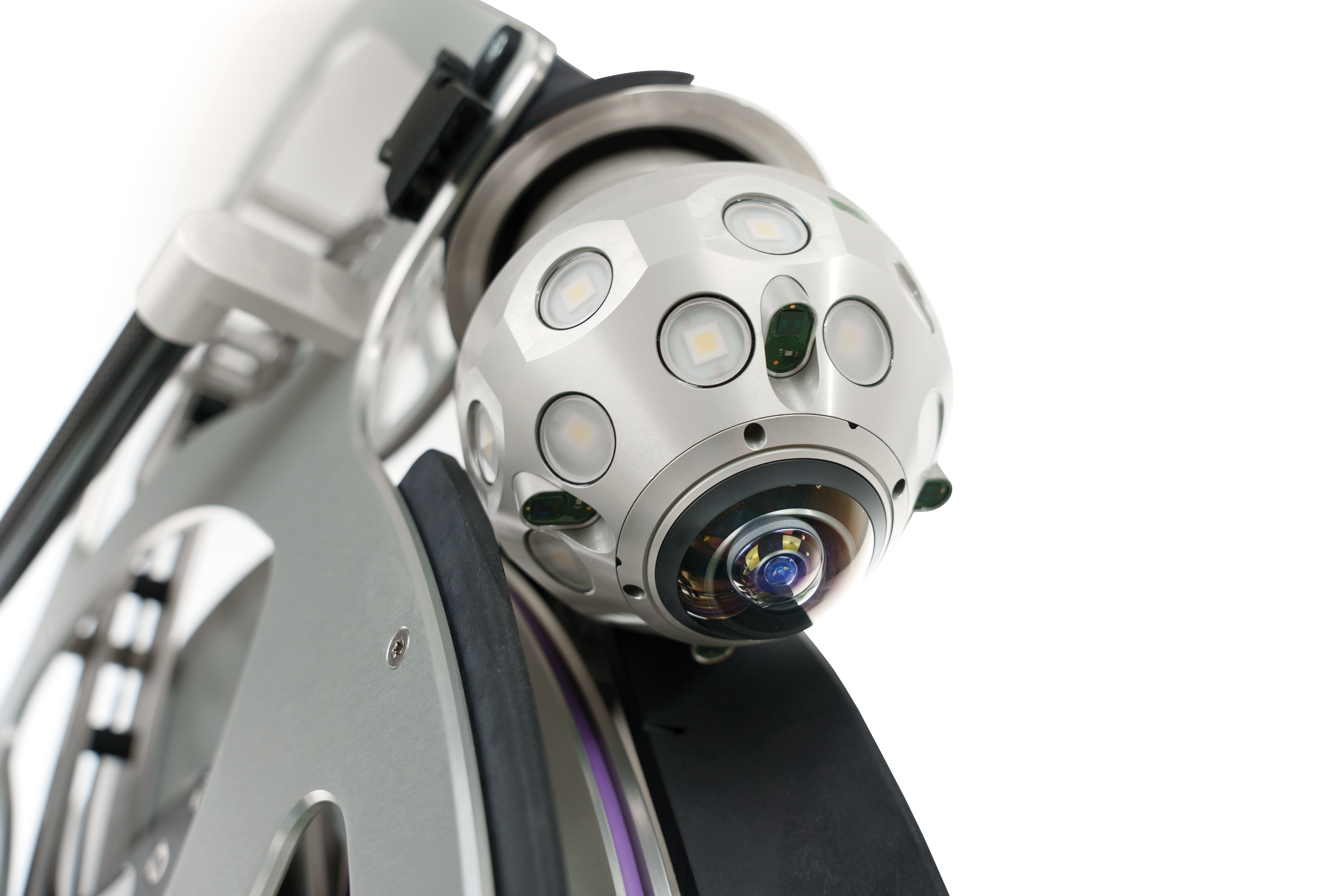

  • High-resolution image quality
    2996 × 2996 px for detailed condition assessments



  • Integrated collision monitoring
    Radar sensors protect the camera and shaft structure



  • Time-of-flight (ToF) sensor technology
    Precise point clouds for geometric evaluation



  • Semi-automatic operation
    Efficient inspections with minimal training required



  • Robust industrial design
    IP54, durable and designed for daily use

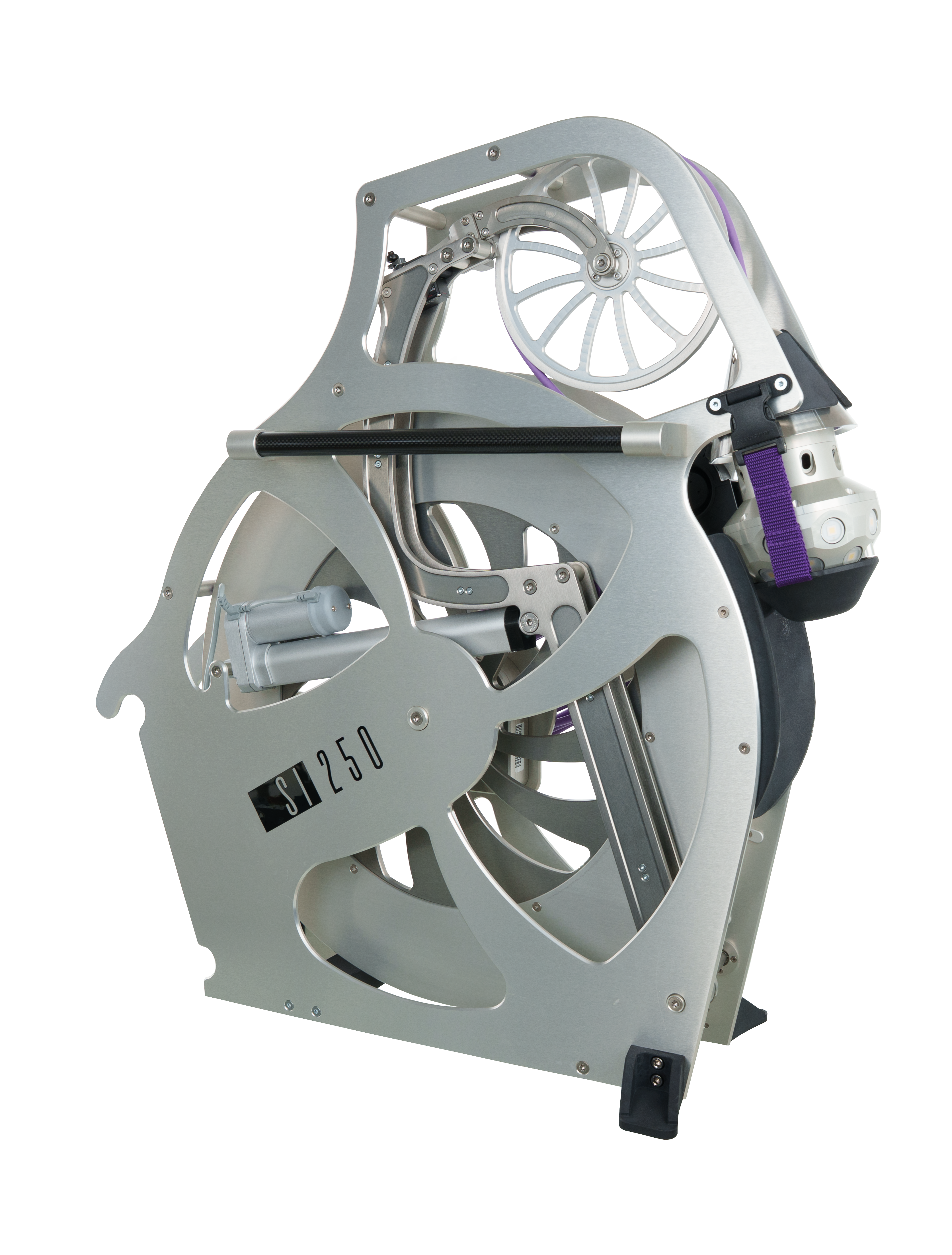

SI-250 shaft camera in use for the Profi NG

  • Cable length 13 m
  • connection cable 6 m
  • protection class IP54
  • emergency stop yes
  • operating temperature 0 to +35 °C
  • weight 22 kg
  • control semi-automatic
  • min. shaft diameter 350 mm
  • viewing angle 250°
  • resolution 2996 x 2996 px
  • Collision detection Radar sensors
  • Point cloud creation Time of flight sensors

No items were found.

Manual SI-250 (1.4 MiB)
